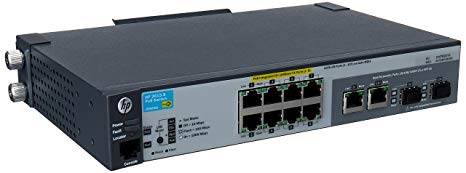

HPE® ProCurve J9565A EOL Maintenance and Support

HPE® End of Support date: March 1, 2023
Status: Supported by TeamKCI

The HPE® ProCurve J9565A SAN Appliance Has Reached EOSL on March 1, 2023 – Don’t Let Your HPE® ProCurve J9565A SAN Equipment Go Unsupported!

Get HPE^® ProCurve J9565A SAN Support Now!

TeamKCI has extensive hands on experience with the HPE® ProCurve J9565A switch and continues to maintain and repair them. Parts and replacement units are in stock and can ship overnight.

TeamKCI will continue to support these units for as long as you use them.

TeamKCI Benefits

Request A Quick Quote For HPE®!

Email Address (required)
This is a request for:
BuyingSellingMaintenance

Overview

Let TeamKCI help you design the most cost-effective Storage Area Network Solution.

Used & Refurbished HPE® Options TeamKCI sells both new and refurbished equipment. Used HPE® systems are available at big savings offering our customers alternative financial options to maximize their IT dollars.

Warranty & Support TeamKCI offers a 12 month warranty and 9-5 technical support on all refurbished HPE® ProCurve J9565A switches and all other pre-owned refurbished HPE® SAN equipment we sell. Extended warranties and 24x7x4 onsite support are also available for an additional charge. Learn more.

How to Get Started? For more information on a HPE® ProCurve J9565A switch or any other HPE® product simply complete the TeamKCI Quick Quote form on this page or call TeamKCI at 201-934-6500 Ext. 11 for immediate assistance.

TechSpecs

Technical Specifications

Networking

Address table size

8000 entries

Management features

HPE® PCM+; HPE® PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB

Denial of service protection

Automatic Filtering of well known Denial of Service Packets

Device management

RFC 1591 DNS (client); Multiple Configuration Files; Multiple Software Images; SSHv1/SSHv2 Secure Shell; TACACS/TACACS+; Web UI

General protocols

IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3 Type 10BASE-T; IEEE 802.3ab 1000BASE-T; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3af Power over Ethernet; IEEE 802.3u 100BASE-X; IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 951 BOOTP; RFC 1058 RIPv1; RFC 1350 TFTP Protocol (revision 2); RFC 1723 RIP v2; RFC 1812 IPv4 Routing; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 2453 RIPv2; UDLD (Uni-directional Link Detection)

IP Multicast

RFC 3376 IGMPv3 (host joins only)

IPv6

RFC 1981 IPv6 Path MTU Discovery; RFC 2460 IPv6 Specification; RFC 2925 Remote Operations MIB (Ping only); RFC 3315 DHCPv6 (client only); RFC 3513 IPv6 Addressing Architecture; RFC 3596 DNS Extension for IPv6; RFC 4022 MIB for TCP; RFC 4113 MIB for UDP; RFC 4251 SSHv6 Architecture; RFC 4252 SSHv6 Authentication; RFC 4253 SSHv6 Transport Layer; RFC 4293 MIB for IP; RFC 4419 Key Exchange for SSH; RFC 4443 ICMPv6; RFC 4861 IPv6 Neighbor Discovery; RFC 4862 IPv6 Stateless Address Auto-configuration

MIBs

RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2021 RMONv2 MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2863 The Interfaces Group MIB

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1098 A Simple Network Management Protocol (SNMP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; SNMPv1/v2c/v3

QoS/Cos

RFC 2474 Diffserv precedence, with 4 queues per port; RFC 2475 DiffServ Architecture; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF); Ingress Rate Limiting

Security

IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2138 RADIUS Authentication; RFC 2866 RADIUS Accounting; Access Control Lists (ACLs); MAC Authentication; MAC Lockdown; MAC Lockout; Port Security; Secure Sockets Layer (SSL); Web Authentication

Latency

100 Mb Latency: < 5.3 µs (LIFO 64-byte packets); 1000 Mb Latency: < 2.7 µs (LIFO 64-byte packets)

Memory and processor

Processor : Freescale PowerPC 8313 @ 333 MHz, 32 MB flash, packet buffer size: 512 KB dynamically allocated, 128 MB DDR2 SDRAM

Performance

Throughput

4.1 million pps

Switching capacity

5.6 Gbps

Ports

Ports

8 RJ-45 auto-sensing 10/100 PoE ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3af PoE), Media Type: Auto-MDIX, Duplex: half or full; 2 dual-personality ports, each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; an IEEE 802.3u Type 100Base-TX; an IEEE 802.3ab 1000Base-T Gigabit Ethernet); or an SFP slot (for use with SFP transceivers); 1 RJ-45 serial console port

Power

Power

Use only the external power adapter module (5070-6082, PA1 AC adapter) supplied with this product

Power consumption

86 W

Power consumption (standby)

11 W

Input frequency

50 / 60 Hz

Input operating current

1.5 A

Power supply PoE

67 W

Input voltage

100-240 VAC

System

Form factor

1U height

Environmental information

Operating temperature range	32 to 113°F
Heat dissipation	87 BTU/hr (91.79 kJ/hr)
Acoustic pressure emissions	Power: 0 dB, Pressure: 0 dB
Operating altitude (imperial)	up to 10000 ft.
Storage humidity	15 to 95% @ 149°F (65°C) (non-condensing)

Compliance information

Electromagnetic compatibility	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 (Canada); AS/NZS CISPR 22; IEC/EN 61000-3-2; IEC/EN 61000-3-3; IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11
Immunity standard	EN 55024, CISPR 24; EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Safety	cUL (CSA 22.2 No. 60950); CE Labeled; UL 60950-1; UL Listed; CAN/CSA 22.2 No. 60950; EN 60825; AS/NZS 60950; IEC 60950-1; EN 60950-1

Physical information

Weight	3.66 lb.
Weight note (metric)	including power adapter and power cord
Weight note (imperial)	including power adapter and power cord
Dimensions (W x D x H)	6.28 x 10 x 1.75 in.
