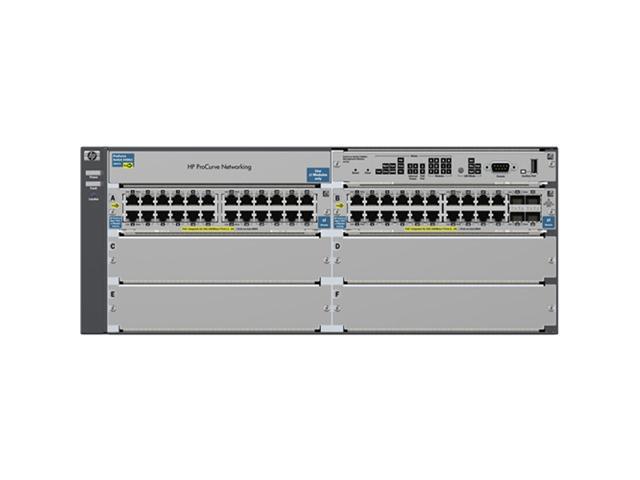

HPE® ProCurve J9447A EOL Maintenance and Support

HPE® End of Support date: December 1, 2019
Status: Supported by TeamKCI

The HPE® ProCurve J9447A SAN Appliance Has Reached EOSL on December 1, 2019 – Don’t Let Your HPE® ProCurve J9447A SAN Equipment Go Unsupported!

Get HPE®^® ProCurve J9447A SAN Support Now!

TeamKCI has extensive hands on experience with the HPE® ProCurve J9447A switch and continues to maintain and repair them. Parts and replacement units are in stock and can ship overnight.

TeamKCI will continue to support these units for as long as you use them.

TeamKCI Benefits

Request A Quick Quote For HPE®!

Email Address (required)
This is a request for:
BuyingSellingMaintenance

Overview

Let TeamKCI help you design the most cost-effective Storage Area Network Solution.

Used & Refurbished HPE® Options TeamKCI sells both new and refurbished equipment. Used HPE® systems are available at big savings offering our customers alternative financial options to maximize their IT dollars.

Warranty & Support TeamKCI offers a 12 month warranty and 9-5 technical support on all refurbished HPE® ProCurve J9447A switches and all other pre-owned refurbished HPE® SAN equipment we sell. Extended warranties and 24x7x4 onsite support are also available for an additional charge. Learn more.

How to Get Started? For more information on a HPE® ProCurve J9447A switch or any other HPE® product simply complete the TeamKCI Quick Quote form on this page or call TeamKCI at 201-934-6500 Ext. 11 for immediate assistance.

TechSpecs

Technical Specifications

Configuration

Routing table size

10000 entries

Switch fabric speed

379.2 Gbps

Connectivity

Routing/switching capacity

379.2 Gbps

Networking

Address table size

64000 entries

Management features

HPE® PCM+; HPE® PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Device management

RFC 1591 DNS (client); HTML and telnet management

General protocols

IEEE 802.1ad Q-in-Q; IEEE 802.1AX-2008 Link Aggregation; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3af Power over Ethernet; IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 951 BOOTP; RFC 1058 RIPv1; RFC 1350 TFTP Protocol (revision 2); RFC 1519 CIDR; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 2453 RIPv2; RFC 2548 (MS-RAS-Vendor only); RFC 3046 DHCP Relay Agent Information Option; RFC 3576 Ext to RADIUS (CoA only); RFC 3768 VRRP; RFC 4675 RADIUS VLAN & Priority; UDLD (Uni-directional Link Detection)

IP Multicast

RFC 3376 IGMPv3 (host joins only); RFC 3973 Draft 2 PIM Dense Mode; RFC 4601 Draft 10 PIM Sparse Mode

IPv6

RFC 1981 IPv6 Path MTU Discovery; RFC 2375 IPv6 Multicast Address Assignments; RFC 2460 IPv6 Specification; RFC 2464 Transmission of IPv6 over Ethernet Networks; RFC 2710 Multicast Listener Discovery (MLD) for IPv6; RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only); RFC 3019 MLDv1 MIB; RFC 3315 DHCPv6 (client and relay); RFC 3484 Default Address Selection for IPv6 ; RFC 3587 IPv6 Global Unicast Address Format; RFC 3596 DNS Extension for IPv6; RFC 3810 MLDv2 (host joins only); RFC 4022 MIB for TCP; RFC 4113 MIB for UDP; RFC 4251 SSHv6 Architecture; RFC 4252 SSHv6 Authentication; RFC 4253 SSHv6 Transport Layer; RFC 4254 SSHv6 Connection; RFC 4291 IP Version 6 Addressing Architecture ; RFC 4293 MIB for IP; RFC 4294 IPv6 Node Requirements; RFC 4419 Key Exchange for SSH; RFC 4443 ICMPv6; RFC 4541 IGMP & MLD Snooping Switch; RFC 4861 IPv6 Neighbor Discovery; RFC 4862 IPv6 Stateless Address Auto-configuration; RFC 5095 Deprecation of Type 0 Routing Headers in IPv6 ; RFC 5340 OSPFv3 for IPv6; RFC 5453 Reserved IPv6 Interface Identifiers; RFC 5722 Handling of Overlapping IPv6 Fragments

MIBs

RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1724 RIPv2 MIB; RFC 1850 OSPFv2 MIB; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2737 Entity MIB (Version 2); RFC 2787 VRRP MIB; RFC 2863 The Interfaces Group MIB; RFC 2925 Ping MIB

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON

OSPF

RFC 2328 OSPFv2; RFC 3101 OSPF NSSA; RFC 5340 OSPFv3 for IPv6

QoS/Cos

RFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF)

Security

IEEE 802.1X Port Based Network Access Control; RFC 1492 TACACS+; RFC 2865 RADIUS (client only); RFC 2866 RADIUS Accounting; Secure Sockets Layer (SSL); SSHv1/SSHv2 Secure Shell

Latency

1000 Mb Latency: < 3.7 µs (FIFO 64-byte packets); 10 Gbps Latency: < 2.1 µs (FIFO 64-byte packets)

Memory and processor

Gigabit Module : ARM9 @ 200 MHz, packet buffer size: 144 Mb QDR SDRAM; 10G Module : ARM9 @ 200 MHz, packet buffer size: 36 Mb QDR SDRAM; Management Module : Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM

Performance

Throughput

up to 282.1 million pps

Ports

Ports

44 RJ-45 autosensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 4 open mini-GBIC slots; 4 open module slots; Supports a maximum of 16 10-GbE ports or 140 autosensing 10/100/1000 ports or 100 mini-GBICs, or a combination

Power

Power supply slots open

Power

One J9306A installed. One open power supply slot is available; three different power supplies are available. See power supply products for additional specifications.; Heat dissipation does not include heat dissipated by the PoE-powered devices themselves.

Power consumption (standby)

215 W

Input frequency

50 / 60 Hz

Power supply name

1 x J9306A

Input voltage

110-127 / 200-240 VAC

System

Form factor

4U height

Environmental information

Operating temperature range	32 to 131°F
Heat dissipation	2450 BTU/hr (2584.75 kJ/hr)
Acoustic pressure emissions	Power: 57 dB, Pressure: 40.2 dB, ISO 7779, ISO 9296
Heat dissipation note	(max. non-PoE); 3700 BTU/hr (3903 kJ/hr) (max. using PoE)
Operating altitude (imperial)	up to 10000 ft.
Storage humidity	15 to 95% @ 149°F (65°C) (noncondensing)

Compliance information

Electromagnetic compatibility	FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Immunity standard	EN 55024, CISPR 24; IEC 61000-4-2; 4 kV CD, 8 kV AD; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Safety	CSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950

Physical information

Weight	34.9 lb.
Dimensions (W x D x H)	17.75 x 17.5 x 6.9 in.
